Figures and Graphics
Figure
Figure contains a Title, an Optional TitleAbbrev, and a mixture containing one or more object-level elements from the %figure.mix; mixture and object-level elements from the %link.char.mix; mixture, in any order. Figure has an optional Float attribute, which indicates whether the Figure is allowed to float in the output, and an optional Label attribute.
Graphics
The Graphic element offers three different ways to provide graphic data:
It can have CDATA element content constituting the data.
It can provide, in the optional Entityref attribute, a reference to an entity containing the data.
It can provide, in the optional Fileref attribute, a filename or pathname for the data.
Graphic also has the optional attributes Format (for the notation of the data) and SrcCredit.

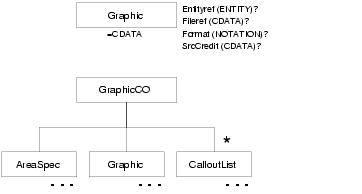

GraphicCO contains AreaSpec, Graphic, and any number of CalloutList elements.
InlineGraphic
InlineGraphic contains CDATA. InlineGraphic has the following optional attributes Entityref, Fileref, Format and SrcCredit.
