4 Scenarios for use

4.1     Applets

For example, a user might download a Java applet that displays historical price graphs for a custom portfolio of stocks. This applet might access a relational database over the Internet to obtain the historical stock prices.

The most common use of applets may be across untrusted boundaries, e.g. fetching applets from another company on the Internet. Thus, this scenario might be called the "Internet" scenario. However, applets might also be downloaded on a local network where client machine security is still an issue.

Typical applets differ from traditional database applications in a number of ways:

• Untrusted applets are severely constrained in the operations they are allowed to perform. In particular, they are not allowed any access to local files and they are not allowed to open network connections to arbitrary hosts.


• Applets on the Internet present new problems with respect to identifying and connecting to databases.¹


• Performance considerations for a database connectivity implementation differ when the database may be halfway around the world. Database applets on the Internet will experience quite different network response times than database applications on a local area network.

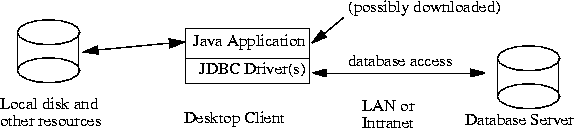

4.2     Applications

Perhaps the most common use of these Java applications will be within a company or on an "Intranet," so this might be called the Intranet scenario. For example, a company might implement all of its corporate applications in Java using GUI building tools that generate Java code for forms based on corporate data schemas. These applications would access corporate database servers on a local or wide area network. However, Java applications could also access databases through the Internet.

The Java application and "Intranet" cases differ from applets in a number of ways. For example, the most natural way to identify a database is typically for the user or application to specify a database name, e.g. "Customers" or "Personnel". The users will expect the system to locate the specific machine, DBMS, JDBC driver, and database.

4.3     Other scenarios

• Trusted applets are applets that have convinced the Java virtual machine* that they can be trusted. They might be trusted because they have been signed with a particular cryptographic key, or because the user has decided to trust applets from a particular source. We will treat these applets the same as applications for security purposes, but they may behave more like applets for other purposes, e.g. locating a database on the Internet.

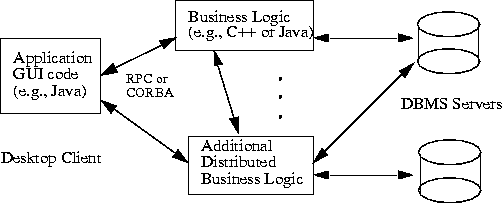

• Three-tier access to databases may be used, in contrast to direct client/server access from Java GUIs to DBMS servers. In this scenario, Java applications make calls to a "middle tier" of services on the net whose implementations in turn access databases. These calls might be made through RPC (remote procedure call) or through an ORB (object request broker), and in either case the middle tier might best be defined using an object paradigm, e.g. "customer objects" with operations for customer invoicing, address changes, and other transactions.



Today, the middle tier is typically implemented in a language such as C or C++. With the introduction of optimizing compilers translating Java byte codes into efficient machine-specific code, the middle tier may practically be implemented in Java; Java has many valuable qualities (robustness, security, multi-threading) for these purposes. JDBC will be of use for this middle tier.

*As used on this web site, the terms "Java Virtual Machine" or "JVM" mean a virtual machine for the Java platform.
