Preliminaries

Running SWIG

swig -tcl example.i

Additional SWIG options

-tcl8         Produce Tcl8.0 native wrappers (use in place of -tcl).
-module       Set the module name.
-namespace    Use [incr Tcl] namespaces.
-prefix pkg   Set a package prefix of `pkg'. This prefix will be
              attached to each function.
-htcl tcl.h   Set name of Tcl header file.
-htk tk.h     Set name of Tk header file.
-plugin       Generate additional code for the netscape plugin.
-noobject     Omit object oriented extensions (compatibility with SWIG 1.0)

Many of these options will be described later.

Getting the right header files and libraries

When locating the right header and libraries files, double check to make sure the files are the correct version and form a matching pair. SWIG works with the following Tcl/Tk releases.

Tcl 7.3, Tk 3.6
Tcl 7.4, Tk 4.0
Tcl 7.5, Tk 4.1
Tcl 7.6, Tk 4.2
Tcl 8.0a2, Tk 8.0a2

Do not mix versions. Although the code might compile if you do, it will usually core dump mysteriously. By default, SWIG looks for the header files "tcl.h" and "tk.h", but your installed version of Tcl/Tk may use slightly different names such as "tcl7.5.h" and "tk4.1.h". If you need to use different header files, you can use the -htcl and -htk options as in :

swig -tcl -htcl tcl7.5.h -htk tk4.1.h example.i

Compiling a dynamic module (Unix)

unix > swig -tcl example.i
unix > gcc -c -fpic example_wrap.c example.c
unix > gcc -shared example.o example_wrap.o -o example.so 									# Linux

Using a dynamic module

load ./example.so example

Static linking

%module mymodule
... declarations ...

%include tclsh.i     // Support code for rebuilding tclsh

To rebuild tclsh, you will need to compile as follows :

unix > swig -tcl example.i
unix > gcc example_wrap.c example.c -I/usr/local/include -L/usr/local/lib -ltcl -ldl \
	-lm -o my_tclsh

unix > swig -tcl -ltclsh.i example.i
unix > gcc example_wrap.c example.c -I/usr/local/include -L/usr/local/lib -ltcl -ldl \
	-lm -o my_tclsh

If you are using Tk, you will want to rebuild the wish executable instead. This can be done as follows :

%module mymodule
... declarations ...

%include wish.i       // Support code for rebuilding wish

unix > swig -tcl example.i
unix > gcc example_wrap.c example.c -I/usr/local/include -L/usr/local/lib -ltk -ltcl \
	-lX11 -ldl -lm -o my_wish

Compilation problems

Setting a package prefix

swig -tcl -prefix Foo example.i

Using [incr Tcl] namespaces

swig -tcl -namespace example.i

When the -namespace option is used, the resulting wrapper code can be compiled under both Tcl and [incr Tcl]. When compiling under Tcl, the namespace will turn into a package prefix such as in Foo_bar. When running under [incr Tcl], it will be something like Foo::bar.

Building Tcl/Tk Extensions under Windows 95/NT

Running SWIG from Developer Studio

• Open up a new workspace and use the AppWizard to select a DLL project.
• Add both the SWIG interface file (the .i file), any supporting C files, and the name of the wrapper file that will be created by SWIG (ie. example_wrap.c). Note : If using C++, choose a different suffix for the wrapper file such as example_wrap.cxx. Don't worry if the wrapper file doesn't exist yet--Developer studio will keep a reference to it around.
• Select the SWIG interface file and go to the settings menu. Under settings, select the "Custom Build" option.
• Enter "SWIG" in the description field.
• Enter "swig -tcl -o $(ProjDir)\$(InputName)_wrap.c $(InputPath)" in the "Build command(s) field"
• Enter "$(ProjDir)\$(InputName)_wrap.c" in the "Output files(s) field".
• Next, select the settings for the entire project and go to "C++:Preprocessor". Add the include directories for your Tcl installation under "Additional include directories".
• Finally, select the settings for the entire project and go to "Link Options". Add the Tcl library file to your link libraries. For example "tcl80.lib". Also, set the name of the output file to match the name of your Tcl module (ie. example.dll).
• Build your project.

Now, assuming all went well, SWIG will be automatically invoked when you build your project. Any changes made to the interface file will result in SWIG being automatically invoked to produce a new version of the wrapper file. To run your new Tcl extension, simply run tclsh or wish and use the load command. For example :

MSDOS > tclsh80
% load example.dll
% fact 4
24
%

Using NMAKE

# Makefile for building various SWIG generated extensions

SRCS          = example.c
IFILE         = example
INTERFACE     = $(IFILE).i
WRAPFILE      = $(IFILE)_wrap.c

# Location of the Visual C++ tools (32 bit assumed)

TOOLS         = c:\msdev
TARGET        = example.dll
CC            = $(TOOLS)\bin\cl.exe
LINK          = $(TOOLS)\bin\link.exe
INCLUDE32     = -I$(TOOLS)\include
MACHINE       = IX86

# C Library needed to build a DLL

DLLIBC        = msvcrt.lib oldnames.lib

# Windows libraries that are apparently needed
WINLIB        = kernel32.lib advapi32.lib user32.lib gdi32.lib comdlg32.lib
winspool.lib

# Libraries common to all DLLs
LIBS          = $(DLLIBC) $(WINLIB)

# Linker options
LOPT      = -debug:full -debugtype:cv /NODEFAULTLIB /RELEASE /NOLOGO /
MACHINE:$(MACHINE) -entry:_DllMainCRTStartup@12 -dll

# C compiler flags

CFLAGS    = /Z7 /Od /c /nologo
TCL_INCLUDES  = -Id:\tcl8.0a2\generic -Id:\tcl8.0a2\win
TCLLIB        = d:\tcl8.0a2\win\tcl80.lib

tcl::
	..\..\swig -tcl -o $(WRAPFILE) $(INTERFACE)
	$(CC) $(CFLAGS) $(TCL_INCLUDES) $(SRCS) $(WRAPFILE)
	set LIB=$(TOOLS)\lib
	$(LINK) $(LOPT) -out:example.dll $(LIBS) $(TCLLIB) example.obj example_wrap.obj

Basic Tcl Interface

Functions

%module example
int foo(int a);
double bar (double, double b = 3.0);
...

set a [foo 2]
set b [bar 3.5 -1.5]
set b [bar 3.5]              # Note : default argument is used

Global variables

int, unsigned int,
double,
char *,

// example.i
%module example
...
double My_variable;
...

# Tcl script
puts $My_variable            # Output value of C global variable
set My_variable 5.5          # Change the value

// example.i
short My_short;

will be accessed in Tcl as follows :

puts [My_short_get]          # Get value of global variable
My_short_set 5.5             # Set value of global variable

Constants

Pointers

_100f8e2_Vector_p

_0_Vector_p

Structures

struct Vector {
	double x,y,z;
};

double Vector_x_get(Vector *obj)
double Vector_x_set(Vector *obj, double x)
double Vector_y_get(Vector *obj)
double Vector_y_set(Vector *obj, double y)
double Vector_z_get(Vector *obj)
double Vector_z_set(Vector *obj, double z)

# v is a Vector that got created somehow
% Vector_x_get $v
3.5
% Vector_x_set $v 7.8            # Change x component

Similar access is provided for unions and the data members of C++ classes.

C++ Classes

class List {
public:
  List();
  ~List();
  int  search(char *item);
  void insert(char *item);
  void remove(char *item);
  char *get(int n);
  int  length;
static void print(List *l);
};

When wrapped by SWIG, the following functions are created :

List    *new_List();
void     delete_List(List *l);
int      List_search(List *l, char *item);
void     List_insert(List *l, char *item);
void     List_remove(List *l, char *item);
char    *List_get(List *l, int n);
int      List_length_get(List *l);
int      List_length_set(List *l, int n);
void     List_print(List *l);

% set l [new_List]
% List_insert $l Ale
% List_insert $l Stout
% List_insert $l Lager
% List_print $l
Lager
Stout
Ale
% puts [List_length_get $l]
3
% puts $l
_1008560_List_p
%

While somewhat primitive, the low-level SWIG interface provides direct and flexible access to almost any C++ object. As it turns out, it is possible to do some rather amazing things with this interface as will be shown in some of the later examples. SWIG 1.1 also generates an object oriented interface that can be used in addition to the basic interface just described here.

The object oriented interface

class List {
public:
  List();
  ~List();
  int  search(char *item);
  void insert(char *item);
  void remove(char *item);
  char *get(int n);
  int  length;
static void print(List *l);
};

Creating new objects

MyObject o                   # Creates a new object `o'

MyObject o -this $objptr     # Turn a pointer to an existing C++ object into a
                             # Tcl object `o'

MyObject -this $objptr       # Turn the pointer $objptr into a Tcl "object"

MyObject -args args          # Create a new object and pick a name for it. A handle
                             # will be returned and is the same as the pointer value.

MyObject                     # The same as MyObject -args, but for constructors that
                             # take no arguments.

Thus, for our List class, we can create new List objects as follows :

List l                       # Create a new list l

set listptr [new_List]       # Create a new List using low level interface
List l2 -this $listptr       # Turn it into a List object named `l2'

set l3 [List]                # Create a new list. The name of the list is in $l3

List -this $listptr          # Turn $listptr into a Tcl object of the same name

Now assuming you're not completely confused at this point, the best way to think of this is that there are really two different ways of representing an object. One approach is to simply use the pointer value as the name of an object. For example :

_100e8f8_List_p

Invoking member functions

% List l
% l insert "Bob"
% l insert "Mary"
% l search "Dave"
0
% ...

% set l [List]
% $l insert "Bob"            # Note $l contains the name of the object
% $l insert "Mary"
% $l search "Dave"
0
%

Deleting objects

% rename l ""                # Destroy list object `l'

Accessing member data

% l cget -length             # Get the length of the list
13

The member -this contains the pointer to the object that is compatible with other SWIG functions. Thus, the following call would be legal

% List l                            # Create a new list object
% l insert Mike
% List_print [l cget -this]         # Print it out using low-level function

Changing member data

% l configure -length 10     # Change length to 10 (probably not a good idea, but
                             # possible).

struct Vector {
	double x, y, z;
};

% v configure -x 3.5 -y 2 -z -1.0

The order of attributes does not matter.

Relationship with pointers

• If you explicitly gave a name to an object, the pointer value can be retrieved using the `cget -this' method. The pointer value is what you should give to other SWIG generated functions if necessary.
• If you let SWIG generate the name of an object for you, then the name of the object is the same as the pointer value. This is the preferred approach.
• If you have a pointer value but it's not a Tcl object, you can turn it into one by calling the constructor with the `-this' option.

Here is a script that illustrates how these things work :

# Example 1 : Using a named object

List l                       # Create a new list
l insert Dave                # Call some methods
l insert Jane
l insert Pat
List_print [l cget -this]    # Call a static method (which requires the pointer value)

# Example 2: Let SWIG pick a name

set l [List]                 # Create a new list
$l insert Dave               # Call some methods
$l insert Jane
$l insert Pat
List_print $l                # Call static method (name of object is same as pointer)

# Example 3: Already existing object
set l [new_List]             # Create a raw object using low-level interface
List_insert $l Dave          # Call some methods (using low-level functions)
List -this $l                # Turn it into a Tcl object instead
$l insert Jane
$l insert Part
List_print $l                # Call static method (uses pointer value as before).

Performance concerns and disabling the object oriented interface

To disable the object oriented interface, run SWIG with the -noobject option. This will strip out all of the extra code and produce only the low-level interface.

About the examples

• Controlling C programs with Tcl
• Building C data structures in Tcl.
• Use of C objects with Tk
• Wrapping a C library (OpenGL in this case)
• Accessing arrays and other common data structures
• Using Tcl to build new Tcl interfaces to C programs.
• Modifying SWIG's handling of datatypes.
• And a bunch of other cool stuff.

Binary trees in Tcl

C files

/* tree.h */
typedef struct Node Node;
struct Node {
	char   *key;
	char   *value;
	Node   *left;
	Node   *right;
};

typedef struct Tree {
	Node   *head;  /*  Starting node */
	Node   *z;     /* Ending node (at leaves) */
} Tree;

extern Node *new_Node(char *key, char *value);
extern Tree *new_Tree();

The C functions to create new nodes and trees are as follows :

/* File : tree.c */
#include <string.h>
#include "tree.h"
Node *new_Node(char *key, char *value) {
	Node *n;
	n = (Node *) malloc(sizeof(Node));
	n->key = (char *) malloc(strlen(key)+1);
	n->value = (char *) malloc(strlen(value)+1);
	strcpy(n->key,key);
	strcpy(n->value,value);
	n->left = 0;
	n->right = 0;
	return n;
};
Tree *new_Tree() {
	Tree *t;
	t = (Tree *) malloc(sizeof(Tree));
	t->head = new_Node("","__head__");
	t->z = new_Node("__end__","__end__");
	t->head->right = t->z;
	t->z->left = t->z;
	t->z->right = t->z;
	return t;
}

Making a quick a dirty Tcl module

// file : tree.i
%module tree
%{
#include "tree.h"
%}
%include tree.h       // Just grab header file since it's fairly simple

% swig -tcl -ltclsh.i tree.i
% gcc tree.c tree_wrap.c -I/usr/local/include -L/usr/local/lib -ltcl -lm -o my_tclsh

We can now try out the module interactively by just running the new `my_tclsh' executable.

unix > my_tclsh
% set t [new_Tree]                  # Create a new tree
_8053198_Tree_p
% set n [Tree_head_get $t]          # Get first node
_80531a8_Node_p
% puts [Node_value_get $n]          # Get its value
__head__
% Node -this $n
% $n cget -value                   # Altenative method for getting value
__head__

Building a C data structure in Tcl

# Insert an item into a tree
proc insert_tree {tree key value} {
    set tree_head [Tree_head_get $tree]
    set tree_z [Tree_z_get $tree]
    set p $tree_head
    set x [Node_right_get $tree_head]
    while {[Node_key_get $x] != "__end__"} {
        set p $x
        if {$key < [Node_key_get $x]} {
		set x [Node_left_get $x]
	 } {
	       set x [Node_right_get $x]
        }
    }
    set x [new_Node $key $value]
    if {$key < [Node_key_get $p]} {
        Node_left_set $p $x
    } {
        Node_right_set $p $x
    }
    Node_left_set $x $tree_z
    Node_right_set $x $tree_z
}

# Search tree and return all matches
proc search_tree {tree key} {
    set tree_head [Tree_head_get $tree]
    set tree_z [Tree_z_get $tree]
    set found {}
    set x [Node_right_get $tree_head]
    while {[Node_key_get $x] != "__end__"} {
        if {[Node_key_get $x] == $key} {
            lappend found [Node_value_get $x]
        }
        if {$key < [Node_key_get $x]} {
            set x [Node_left_get $x]
        } {
            set x [Node_right_get $x]
        }
    }
    return $found
}

# Insert all of the files in pathname into a binary tree

proc build_dir_tree {tree pathname} {
    set error [catch {set filelist [glob -nocomplain $pathname/*]}]
    if {$error == 0} {
        foreach f $filelist {
            if {[file isdirectory $f] == 1} {
                insert_tree $tree [file tail $f] $f
                if {[file type $f] != "link"} {build_dir_tree $tree $f}
            } {
                insert_tree $tree [file tail $f] $f
            }
        }
    }
}

% source tree.tcl
% set t [new_Tree]       # Create a new tree
_80533c8_Tree_p
% build_dir_tree $t /home/beazley/SWIG/SWIG1.1
% search_tree $t tcl
/home/beazley/SWIG/SWIG1.1/Examples/tcl /home/beazley/SWIG/SWIG1.1/swig_lib/tcl
%

Implementing methods in C

void insert_tree(Tree *t, char *key, char *value) {
	Node *p;
	Node *x;

	p = t->head;
	x = t->head->right;
	while (x != t->z) {
		p = x;
		if (strcmp(key,x->key) < 0)
			x = x->left;
		else
			x = x->right;
	}
	x = new_Node(key,value);
	if (strcmp(key,p->key) < 0)
		p->left = x;
	else
		p->right = x;
	x->left = t->z;
	x->right = t->z;
}

When reimplemented in C, the underlying Tcl script may not notice the difference. For example, our directory subroutine would not care if insert_tree had been written in Tcl or C. Of course, by writing this function C, we will get significantly better performance.

Building an object oriented C interface

%module tree
%{
#include "tree.h"
%}

%include tree.h
%{

  /* Function to count up Nodes */
  static  int count_nodes(Node *n, Node *end) {
    if (n == end) return 0;
    return 1+count_nodes(n->left,end)+count_nodes(n->right,end);
  }

%}

// Attach some new methods to the Tree structure

%addmethods Tree {
   void insert(char *key, char *value) {
        insert_tree(self,key,value);
   }
   char *search(char *key) {
        return search_tree(self,key);
   }
   char *findnext(char *key) {
     return find_next(self,key);
   }
   int count() {
     return count_nodes(self->head->right,self->z);
   }
   Tree();        // This is just another name for new_Tree
}

proc build_dir_tree {tree pathname} {
    set error [catch {set filelist [glob -nocomplain $pathname/*]}]
    if {$error == 0} {
        foreach f $filelist {
            if {[file isdirectory $f] == 1} {
                $tree insert [file tail $f] $f      # Note new calling method
                if {[file type $f] != "link"} {build_dir_tree $tree $f}
            } {
                $tree insert [file tail $f] $f
            }
        }
    }
}

% source tree.tcl
% Tree t                        # Create a new Tree object
_8054610_Tree_p
% build_dir_tree t /home/beazley/SWIG/SWIG1.1
% t count
1770
% t search glaux.i
/home/beazley/SWIG/SWIG1.1/Examples/OpenGL/glaux.i
% t search typemaps
/home/beazley/SWIG/SWIG1.1/Examples/perl5/typemaps
% t findnext typemaps
/home/beazley/SWIG/SWIG1.1/Examples/python/typemaps
% t findnext typemaps
/home/beazley/SWIG/SWIG1.1/Examples/tcl/typemaps
% t findnext typemaps
None
%

With a little extra work, we've managed to turn an ordinary C structure into a class-like object in Tcl.

Building C/C++ data structures with Tk

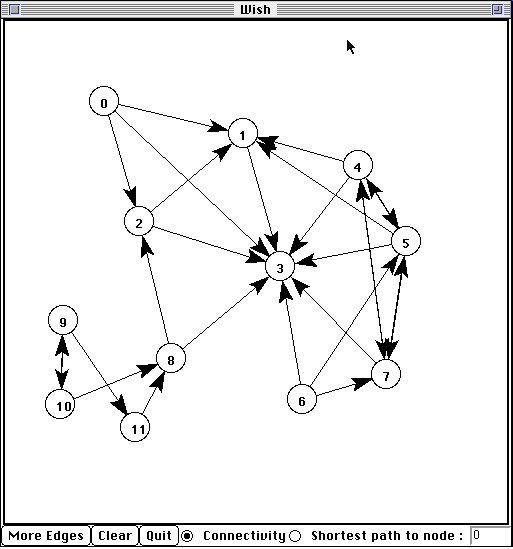

Suppose that we have a C program for manipulating directed graphs and that we wanted to provide a Tk interface for building graphs using a ball-and-stick model such as the following :

The SWIG interface file for this might look something like this :

%module graph
%{
#include "graph.h"
%}

/* Get a node's number */
int      GetNum(Node *n);               /* Get a node's number         */
AdjList *GetAdj(Node *n);               /* Get a node's adjacency list */
AdjList *GetNext(AdjList *l);           /* Get next node in adj. list  */
Node    *GetNode(AdjList *l);           /* Get node from adj. list     */
Node    *new_node();                    /* Make a new node             */
void     AddLink(Node *v1, Node *v2);   /* Add an edge                 */
... etc ...

# Make a new node and put it on the canvas
proc mkNode {x y} {
    global nodeX nodeY nodeP nodeMap nodeList edgeFirst edgeSecond
    set new [.c create oval [expr $x-15] [expr $y-15] \
		 [expr $x+15] [expr $y+15] -outline black \
		 -fill white -tags node]
    set newnode [new_node]                              ;# Make a new C Node
    set nnum [GetNum $newnode]                          ;# Get our node's number
    set id [.c create text [expr $x-4] [expr $y+10] \
	     -text $nnum -anchor sw -tags nodeid]
    set nodeX($new) $x			                                  ;# Save coords of canvas item
    set nodeY($new) $y
    set nodeP($new) $newnode                            ;# Save C pointer
    set nodeMap($newnode) $new                          ;# Map pointer to Tk widget
    set edgeFirst($new) {}
    set edgeSecond($new) {}
    lappend nodeList $new                               ;# Keep a list of all C
                                                        ;# Pointers we've made
}

# Make a new edge between two nodes and put an arrow on the canvas
proc mkEdge {first second new} {
    global nodeP edgeFirst edgeSecond
    set edge [mkArrow $first $second]                   ;# Make an arrow
    lappend edgeFirst($first) $edge                     ;# Save information
    lappend edgeSecond($second) $edge
    if {$new == 1} {
# Now add an edge within our C data structure
	AddLink $nodeP($first) $nodeP($second)           ;# Add link to C structure
    }
}

In these functions, the array nodeP() allows us to associate a particular canvas item with a C object. When manipulating the graph, this makes it easy to move from the Tcl world to C. A second array, nodeMap() allows us to go the other way--mapping C pointers to canvas items. A list nodeList keeps track of all of the nodes we've created just in case we want to examine all of the nodes. For example, suppose a C function added more edges to the graph. To reflect the new state of the graph, we would want to add more edges to the Tk canvas. This might be accomplished as follows :

# Look at the C data structure and update the canvas
proc mkEdges {} {
    global nodeX nodeY nodeP nodeMap nodeList edgeFirst edgeSecond
    unset edgeFirst
    unset edgeSecond
    .c delete arc              # Edges have been tagged with arc (not shown)

    foreach node $nodeList {   ;# clear old lists
	set edgeFirst($node) {}
	set edgeSecond($node) {}
    }
    foreach node $nodeList {                    ;# Go through all of the nodes
	set v $nodeP($node)                      ;# Get the node pointer
	set v1 [GetAdj $v]                       ;# Get its adjacency list
	while {$v1 != "NULL"} {
	    set v2 [GetNode $v1]                 ;# Get node pointer
	    set w $nodeMap($v2)                  ;# Get canvas item
	    mkEdge $node $w 0                    ;# Make an edge between them
	    set v1 [GetNext $v1]                 ;# Get next node
	}
    }
}

This function merely scans through all of the nodes and walks down the adjacency list of each one. The nodeMap() array maps C pointers onto the corresponding canvas items. We use this to construct edges on the canvas using the mkEdge function.

Accessing arrays

// Add vector a+b -> c
void vector_add(double *a, double *b, double *c, int size);

// SWIG helper functions for double arrays
%inline %{
double *new_double(int size) {
	return (double *) malloc(size*sizeof(double));
}
void delete_double(double *a) {
	free a;
}
double get_double(double *a, int index) {
	return a[index];
}
void set_double(double *a, int index, double val) {
	a[index] = val;
}
%}

Using our C functions might work like this :

# Tcl code to create some arrays and add them

set a [new_double 200]
set b [new_double 200]
set c [new_double 200]

# Fill a and b with some values
for {set i 0} {$i < 200} {incr i 1} {
	set_double $a $i 0.0
	set_double $b $i $i
}

# Add them and store result in c
vector_add $a $b $c 200

# Tcl Procedure to turn a list into a C array
proc Tcl2Array {l} {
	set len [llength $l]
	set a [new_double $len]
	set i 0
	foreach item $l {
		set_double $a $i $item
		incr i 1
	}
	return $a
}

# Tcl Procedure to turn a C array into a Tcl List
proc Array2Tcl {a size} {
	set l {}
	for {set i 0} {$i < size} {incr i 1} {
		lappend $l [get_double $a $i]
	}
	return $l
}

Building a simple OpenGL module

Required files

Wrapping gl.h

• Copy the file gl.h to a file gl.i which will become the interface.
• Edit the gl.i file by taking out unneeded C preprocessor directives and any other clutter that you find.
• Put the following code at the beginning of the gl.i file

  // gl.i : SWIG file for OpenGL
  %module gl
  %{
  #include <GL/gl.h>
  %}

  ... Rest of edited gl.h file here ...



A critical part of this first step is making sure you have the proper set of typedefs in the gl.i file. The first part of the file should include definitions such as the following :

typedef unsigned int GLenum;
typedef unsigned char GLboolean;
typedef unsigned int GLbitfield;
typedef signed char GLbyte;
typedef short GLshort;
typedef int GLint;
typedef int GLsizei;
typedef unsigned char GLubyte;
typedef unsigned short GLushort;
typedef unsigned int GLuint;
typedef float GLfloat;
typedef float GLclampf;
typedef double GLdouble;
typedef double GLclampd;
typedef void GLvoid;

Wrapping glu.h

%module glu
%{
#include <GL/glu.h>
%}

... rest of edited glu.h file here ...

Wrapping the aux library

// File :glaux.i
%module glaux
%{
#include "glaux.h"
%}

... Rest of edited glaux.h file ...

A few helper functions

// help.i : OpenGL helper functions

%inline %{
GLfloat *newfv4(GLfloat a,GLfloat b,GLfloat c,GLfloat d) {
  GLfloat *f;
  f = (GLfloat *) malloc(4*sizeof(GLfloat));
  f[0] = a; f[1] = b; f[2] = c; f[3] = d;
  return f;
}
void setfv4(GLfloat *fv, GLfloat a, GLfloat b, GLfloat c, GLfloat d) {
  fv[0] = a; fv[1] = b; fv[2] = c; fv[3] = d;
}
%}
%name(delfv4) void free(void *);

An OpenGL package

//
// opengl.i.    SWIG Interface file for OpenGL
%module opengl

%include gl.i         // The main GL functions
%include glu.i        // The GLU library
%include glaux.i      // The aux library
%include help.i       // Our helper functions

unix > swig -tcl opengl.i           #  Build a dynamicly loaded extension

unix > swig -tcl -lwish.i opengl.i  # Build a statically linked wish executable

Using the OpenGL module

load ./opengl.so
auxInitDisplayMode [expr {$AUX_SINGLE | $AUX_RGBA | $AUX_DEPTH}]
auxInitPosition 0 0 500 500
auxInitWindow "Lit-Sphere"

# set up material properties
set mat_specular [newfv4 1.0 1.0 1.0 1.0]
set mat_shininess [newfv4 50.0 0 0 0]
set light_position [newfv4 1.0 1.0 1.0 0.0]

glMaterialfv $GL_FRONT $GL_SPECULAR $mat_specular
glMaterialfv $GL_FRONT $GL_SHININESS $mat_shininess
glLightfv $GL_LIGHT0 $GL_POSITION $light_position
glEnable $GL_LIGHTING
glEnable $GL_LIGHT0
glDepthFunc $GL_LEQUAL
glEnable $GL_DEPTH_TEST

# Set up view
glClearColor 0 0 0 0
glColor3f 1.0 1.0 1.0
glMatrixMode $GL_PROJECTION
glLoadIdentity
glOrtho -1 1 -1 1 -1 1
glMatrixMode $GL_MODELVIEW
glLoadIdentity

# Draw it
glClear $GL_COLOR_BUFFER_BIT
glClear $GL_DEPTH_BUFFER_BIT
auxSolidSphere 0.5

# Clean up
delfv4 $mat_specular
delfv4 $mat_shininess
delfv4 $light_position

In our interpreted interface, it is possible to interactively change parameters and see the effects of various OpenGL functions. This a great way to figure out what various functions do and to try different things without having to recompile and run after each change.

Problems with the OpenGL interface

• OpenGL constants are installed as global variables. As a result, it is necessary to use the global keyword when writing Tcl subroutines. For example :

  proc clear_screan { } {
  	global GL_COLOR_BUFFER_BIT, GL_DEPTH_BUFFER_BIT
  	glClear $GL_COLOR_BUFFER_BIT
  	glClear $GL_DEPTH_BUFFER_BIT
  }



• Arrays need to be accessed via helper functions such as our newfv4() function. This approach certainly works and its easy enough to implement, but it may be preferable to call certain OpenGL functions with a Tcl list instead. For example :

  glMaterialfv $GL_FRONT $GL_SPECULAR {1.0 1.0 1.0 1.0}


While these are only minor annoyances, it turns out that you can address both problems using SWIG typemaps (which are discussed shortly).

Exception handling

class RangeError {};   // Used for an exception

class DoubleArray {
  private:
    int n;
    double *ptr;
  public:
    // Create a new array of fixed size
    DoubleArray(int size) {
      ptr = new double[size];
      n = size;
    }
    // Destroy an array
    ~DoubleArray() {
       delete ptr;
    }
    // Return the length of the array
    int   length() {
      return n;
    }

    // Get an item from the array and perform bounds checking.
    double getitem(int i) {
      if ((i >= 0) && (i < n))
        return ptr[i];
      else
        throw RangeError();
    }

    // Set an item in the array and perform bounds checking.
    void setitem(int i, double val) {
      if ((i >= 0) && (i < n))
        ptr[i] = val;
      else {
        throw RangeError();
      }
    }
  };

The functions associated with this class can throw a C++ range exception for an out-of-bounds array access. We can catch this in our Tcl extension by specifying the following in an interface file :

%except(tcl) {
  try {
    $function                // Gets substituted by actual function call
  }
  catch (RangeError) {
    interp->result = "Array index out-of-bounds";
    return TCL_ERROR;
  }
}

%except(tcl8) {
  try {
    $function                // Gets substituted by actual function call
  }
  catch (RangeError) {
    Tcl_SetStringObj(tcl_result,"Array index out-of-bounds");
    return TCL_ERROR;
  }
}

Typemaps

What is a typemap?

%module example

%typemap(tcl,in) int {
	$target = (int) atoi($source);
	printf("Received an integer : %d\n",$target);
}
...
extern int fact(int n);

Typemaps require a language name, method name, datatype, and conversion code. For Tcl, "tcl" should be used as the language name. For Tcl 8.0, "tcl8" should be used if you are using the native object interface. The "in" method in this example refers to an input argument of a function. The datatype `int' tells SWIG that we are remapping integers. The supplied code is used to convert from a Tcl string to the corresponding C datatype. Within the supporting C code, the variable $source contains the source data (a string in this case) and $target contains the destination of a conversion (a C local variable).

When the example is compiled into a Tcl module, it will operate as follows :

% fact 6
Received an integer : 6
720
%

A full discussion of typemaps can be found in the main SWIG users reference. We will primarily be concerned with Tcl typemaps here.

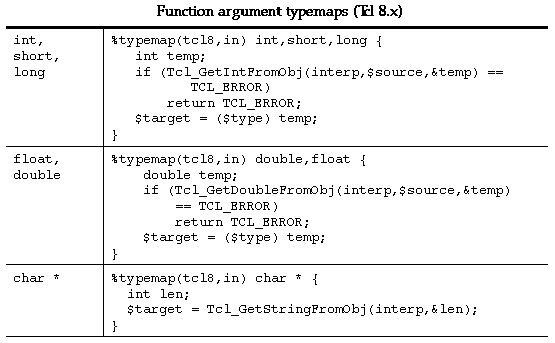

Tcl typemaps

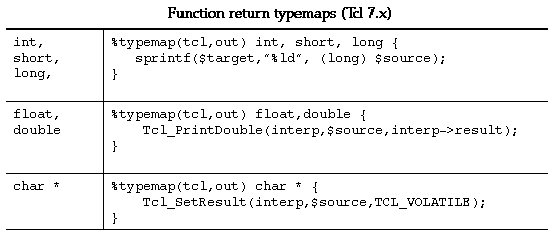

%typemap(tcl,in) Converts a string to input function arguments

%typemap(tcl,out) Converts return value of a C function to a string

%typemap(tcl,freearg) Cleans up a function argument (if necessary)

%typemap(tcl,argout) Output argument processing

%typemap(tcl,ret) Cleanup of function return values

%typemap(tcl,const) Creation of Tcl constants

%typemap(memberin) Setting of C++ member data

%typemap(memberout) Return of C++ member data

%typemap(tcl, check) Check value of function arguments.

Typemap variables

$source Source value of a conversion

$target Target of conversion (where the result should be stored)

$type C datatype being remapped

$mangle Mangled version of data (used for pointer type-checking)

$value Value of a constant (const typemap only)

$arg Original function argument (usually a string)

Name based type conversion

%module foo

// This typemap will be applied to all char ** function arguments
%typemap(tcl,in) char ** { ... }

// This typemap is applied only to char ** arguments named `argv'
%typemap(tcl,in) char **argv { ... }

Due to the name-based nature of typemaps, it is important to note that typemaps are independent of typedef declarations. For example :

%typemap(tcl, in) double {
	... get a double ...
}
void foo(double);            // Uses the above typemap
typedef double Real;
void bar(Real);              // Does not use the above typemap (double != Real)

%typemap(tcl,in) double {
	... get a double ...
}
void foo(double);

typedef double Real;         // Uses typemap
%apply double { Real };      // Applies all "double" typemaps to Real.
void bar(Real);              // Now uses the same typemap.

Converting a Tcl list to a char **

%module argv

// This tells SWIG to treat char ** as a special case
%typemap(tcl,in) char ** {
        int tempc;
        if (Tcl_SplitList(interp,$source,&tempc,&$target) == TCL_ERROR)
		return TCL_ERROR;
}

// This gives SWIG some cleanup code that will get called after the function call
%typemap(tcl,freearg) char ** {
        free((char *) $source);
}

// Return a char ** as a Tcl list
%typemap(tcl,out) char ** {
        int i = 0;
        while ($source[i]) {
             Tcl_AppendElement(interp,$source[i]);
             i++;
        }
}

// Now a few test functions
%inline %{
int print_args(char **argv) {
    int i = 0;
    while (argv[i]) {
         printf("argv[%d] = %s\n", i,argv[i]);
         i++;
    }
    return i;
}


// Returns a char ** list
char **get_args() {
    static char *values[] = { "Dave", "Mike", "Susan", "John", "Michelle", 0};
    return &values[0];
}

// A global variable
char *args[] = { "123", "54", "-2", "0", "NULL", 0 };

%}
%include tclsh.i

% print_args {John Guido Larry}
argv[0] = John
argv[1] = Guido
argv[2] = Larry
3
% puts [get_args]
Dave Mike Susan John Michelle
% puts [args_get]
123 54 -2 0 NULL
%

Perhaps the only tricky part of this example is the implicit memory allocation that is performed by the Tcl_SplitList function. To prevent a memory leak, we can use the SWIG "freearg" typemap to clean up the argument value after the function call is made. In this case, we simply free up the memory that Tcl_SplitList allocated for us.

Remapping constants

proc clearscreen { } {
	global GL_COLOR_BUFFER_BIT
	glClear $GL_COLOR_BUFFER_BIT
}

// Declare some Tcl hash table variables
%{
static Tcl_HashTable  constTable;      /* Hash table          */
static int           *swigconst;       /* Temporary variable  */
static Tcl_HashEntry *entryPtr;        /* Hash entry          */
static int            dummy;           /* dummy value         */
%}

// Initialize the hash table (This goes in the initialization function)

%init %{
  Tcl_InitHashTable(&constTable,TCL_STRING_KEYS);
%}

// A Typemap for creating constant values
// $source = the value of the constant
// $target = the name of the constant

%typemap(tcl,const) int, unsigned int, long, unsigned long {
  entryPtr = Tcl_CreateHashEntry(&constTable,"$target",&dummy);
  swigconst = (int *) malloc(sizeof(int));
  *swigconst = $source;
  Tcl_SetHashValue(entryPtr, swigconst);
  /* Make it so constants can also be used as variables */
  Tcl_LinkVar(interp,"$target", (char *) swigconst, TCL_LINK_INT | TCL_LINK_READ_ONLY);
};

// Now change integer handling to look for names in addition to values
%typemap(tcl,in) int, unsigned int, long, unsigned long {
  Tcl_HashEntry *entryPtr;
  entryPtr = Tcl_FindHashEntry(&constTable,$source);
  if (entryPtr) {
    $target = ($type) (*((int *) Tcl_GetHashValue(entryPtr)));
  } else {
    $target = ($type) atoi($source);
  }
}

proc clearscreen { } {
	glClear GL_COLOR_BUFFER_BIT
}

Returning values in arguments

// A typemap defining how to return an argument by appending it to the result
%typemap(tcl,argout) double *outvalue {
        char dtemp[TCL_DOUBLE_SPACE];
        Tcl_PrintDouble(interp,*($source),dtemp);
        Tcl_AppendElement(interp, dtemp);
}

// A typemap telling SWIG to ignore an argument for input
// However, we still need to pass a pointer to the C function
%typemap(tcl,ignore) double *outvalue {
	static double temp;         /* A temporary holding place */
	$target = &temp;
}

// Now a function returning two values
int mypow(double a, double b, double *outvalue) {
        if ((a < 0) || (b < 0)) return -1;
        *outvalue = pow(a,b);
        return 0;
};

% mypow 2 3     # Returns two values, a status value and the result
0 8
%

An alternative approach to this is to return values in a Tcl variable as follows :

%typemap(tcl,argout) double *outvalue {
	char temp[TCL_DOUBLE_SPACE];
	Tcl_PrintDouble(interp,*($source),dtemp);
	Tcl_SetVar(interp,$arg,temp,0);
}
%typemap(tcl,in) double *outvalue {
	static double temp;
	$target = &temp;
}

% set status [mypow 2 3 a]
% puts $status
0
% puts $a
8.0
%

Mapping C structures into Tcl Lists

typedef struct {
  char  login[16];            /* Login ID  */
  int   uid;                  /* User ID   */
  int   gid;                  /* Group ID  */
  char  name[32];             /* User name */
  char  home[256];            /* Home directory */
} User;

extern void add_user(User u);
extern User *lookup_user(char *name);

// This works for both "User" and "User *"
%typemap(tcl,in) User * {
	int tempc;
	char **tempa;
	static User temp;
	if (Tcl_SplitList(interp,$source,&tempc,&tempa) == TCL_ERROR) return TCL_ERROR;
	if (tempc != 5) {
		free((char *) tempa);
		interp->result = "Not a valid User record";
		return TCL_ERROR;
	}
	/* Split out the different fields */
	strncpy(temp.login,tempa[0],16);
	temp.uid = atoi(tempa[1]);
	temp.gid = atoi(tempa[2]);
	strncpy(temp.name,tempa[3],32);
	strncpy(temp.home,tempa[4],256);
	$target = &temp;
	free((char *) tempa);
}

// Describe how we want to return a user record
%typemap(tcl,out) User * {
	char temp[20];
	if ($source) {
	Tcl_AppendElement(interp,$source->login);
	sprintf(temp,"%d",$source->uid);
	Tcl_AppendElement(interp,temp);
	sprintf(temp,"%d",$source->gid);
	Tcl_AppendElement(interp,temp);
	Tcl_AppendElement(interp,$source->name);
	Tcl_AppendElement(interp,$source->home);
	}
}

These function marshall Tcl lists to and from our User data structure. This allows a more natural implementation that we can use as follows :

% add_user {beazley 500 500 "Dave Beazley" "/home/beazley"}
% lookup_user beazley
beazley 500 500 {Dave Beazley} /home/beazley

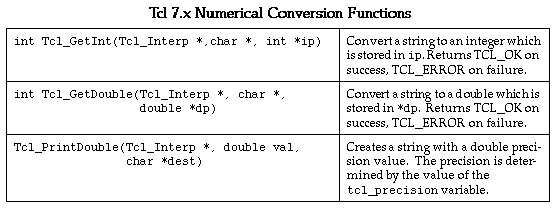

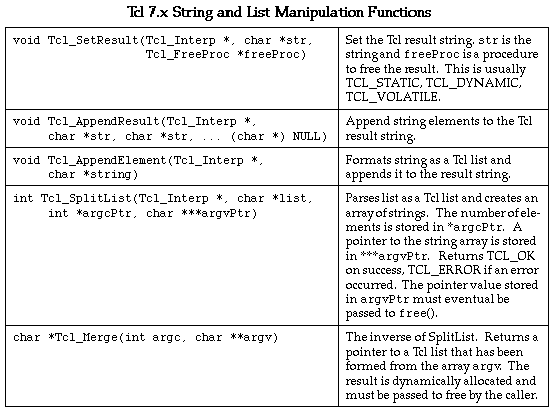

Useful functions

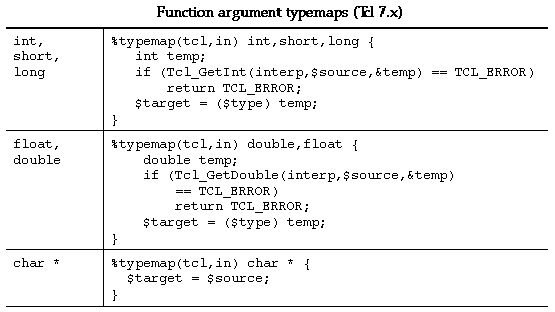

Standard typemaps

Pointer handling

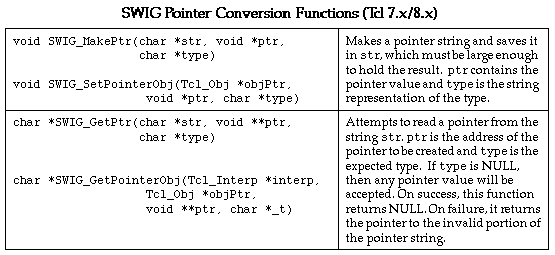

These functions can be used in typemaps as well. For example, the following typemap makes an argument of "char *buffer" accept a pointer instead of a NULL-terminated ASCII string.

%typemap(tcl,in) char *buffer {
	if (SWIG_GetPtr($source, (void **) &$target, "$mangle")) {
		Tcl_SetResult(interp,"Type error. Not a pointer", TCL_STATIC);
		return TCL_ERROR;
	}
}

By now you hopefully have the idea that typemaps are a powerful mechanism for building more specialized applications. While writing typemaps can be technical, many have already been written for you. See the SWIG library reference for more information.

Configuration management with SWIG

While SWIG is certainly not a magical solution to the configuration management problem, it can help out alot in a number of key areas :

• SWIG generated code can be used with all versions of Tcl/Tk newer than 7.3/3.6. This includes the Tcl Netscape Plugin and Tcl 8.0a2.
• The SWIG library mechanism can be used to manage various code fragments and initialization functions.
• SWIG generated code usually requires no modification so it is relatively easy to switch between different Tcl versions as necessary or upgrade to a newer version when the time comes (of course, the Sun Tcl/Tk team might have changed other things to keep you occupied)

Writing a main program and Tcl_AppInit()

/* main.c */
#include <tcl.h>

main(int argc, char *argv[]) {
	Tcl_Main(argc,argv);
	exit(0);
}

int Tcl_AppInit(Tcl_Interp *interp) {
	if (Tcl_Init(interp) == TCL_ERROR) {
		return TCL_ERROR;
	}

	/* Initialize your extension */
	if (Your_Init(interp) == TCL_ERROR) {
		return TCL_ERROR;
	}

	tcl_RcFileName = "~/.myapp.tcl";
	return TCL_OK;
}

In SWIG, it is almost never necessary to write a Tcl_AppInit() function because this is now done by SWIG library files such as tclsh.i or wish.i. To give a better idea of what these files do, here's the code from the SWIG tclsh.i file which is roughly comparable to the above code

// tclsh.i : SWIG library file for rebuilding tclsh
%{

/* A TCL_AppInit() function that lets you build a new copy
 * of tclsh.
 *
 * The macro SWIG_init contains the name of the initialization
 * function in the wrapper file.
 */

#ifndef SWIG_RcFileName
char *SWIG_RcFileName = "~/.myapprc";
#endif

int Tcl_AppInit(Tcl_Interp *interp){

  if (Tcl_Init(interp) == TCL_ERROR)
    return TCL_ERROR;

  /* Now initialize our functions */
  if (SWIG_init(interp) == TCL_ERROR)
    return TCL_ERROR;

#if TCL_MAJOR_VERSION > 7 || TCL_MAJOR_VERSION == 7 && TCL_MINOR_VERSION >= 5
   Tcl_SetVar(interp,"tcl_rcFileName",SWIG_RcFileName,TCL_GLOBAL_ONLY);
#else
   tcl_RcFileName = SWIG_RcFileName;
#endif
  return TCL_OK;
}

#if TCL_MAJOR_VERSION > 7 || TCL_MAJOR_VERSION == 7 && TCL_MINOR_VERSION >= 4
int main(int argc, char **argv) {
  Tcl_Main(argc, argv, Tcl_AppInit);
  return(0);

}
#else
extern int main();
#endif

%}

This file is essentially the same as a normal Tcl_AppInit() function except that it supports a variety of Tcl versions. When included into an interface file, the symbol SWIG_init contains the actual name of the initialization function (This symbol is defined by SWIG when it creates the wrapper code). Similarly, a startup file can be defined by simply defining the symbol SWIG_RcFileName. Thus, a typical interface file might look like this :

%module graph
%{
#include "graph.h"
#define SWIG_RcFileName "graph.tcl"
%}

%include tclsh.i

... declarations ...

Creating a new package initialization library

// expect.i : SWIG Library file for Expect
%{

/* main.c - main() and some logging routines for expect

Written by: Don Libes, NIST, 2/6/90

Design and implementation of this program was paid for by U.S. tax
dollars.  Therefore it is public domain.  However, the author and NIST
would appreciate credit if this program or parts of it are used.
*/

#include "expect_cf.h"
#include <stdio.h>
#include INCLUDE_TCL
#include "expect_tcl.h"

void
main(argc, argv)
int argc;
char *argv[];
{
        int rc = 0;
        Tcl_Interp *interp = Tcl_CreateInterp();
        int SWIG_init(Tcl_Interp *);

        if (Tcl_Init(interp) == TCL_ERROR) {
                fprintf(stderr,"Tcl_Init failed: %s\n",interp->result);
                exit(1);
        }
        if (Exp_Init(interp) == TCL_ERROR) {
                fprintf(stderr,"Exp_Init failed: %s\n",interp->result);
                exit(1);
        }

        /* SWIG initialization. --- 2/11/96  */
        if (SWIG_init(interp) == TCL_ERROR) {
                fprintf(stderr,"SWIG initialization failed: %s\n", interp->result);
                exit(1);
        }

        exp_parse_argv(interp,argc,argv);
        /* become interactive if requested or "nothing to do" */
        if (exp_interactive)
                (void) exp_interpreter(interp);
        else if (exp_cmdfile)
                rc = exp_interpret_cmdfile(interp,exp_cmdfile);
        else if (exp_cmdfilename)
                rc = exp_interpret_cmdfilename(interp,exp_cmdfilename);

        /* assert(exp_cmdlinecmds != 0) */
        exp_exit(interp,rc);
        /*NOTREACHED*/
}
%}

In the event that you need to write a new library file such as this, the process usually isn't too difficult. Start by grabbing the original Tcl_AppInit() function for the package. Enclose it in a %{,%} block. Now add a line that makes a call to SWIG_init(). This will automatically resolve to the real initialization function when compiled.

Combining Tcl/Tk Extensions

// blt.i : SWIG library file for initializing the BLT extension
%{
#ifdef __cplusplus
extern "C" {
#endif
extern int Blt_Init(Tcl_Interp *);
#ifdef __cplusplus
}
#endif
%}
%init %{
	if (Blt_Init(interp) == TCL_ERROR) {
		return TCL_ERROR;
	}
%}


// tix.i : SWIG library file for initializing the Tix extension
%{
#ifdef __cplusplus
extern "C" {
#endif
extern int Tix_Init(Tcl_Interp *);
#ifdef __cplusplus
}
#endif
%}
%init %{
	if (Tix_Init(interp) == TCL_ERROR) {
		return TCL_ERROR;
	}
%}

To use our library files and build a new version of wish, we might now do the following :

// mywish.i : wish with a bunch of stuff added to it
%include wish.i
%include blt.i
%include tix.i

... additional declarations ...

// interface.i
%module mymodule

%include mywish.i              // Build our version of Tcl with extensions

... C declarations ...

unix > swig -tcl -lmywish.i interface.i

Limitations to this approach

Dynamic loading

Turning a SWIG module into a Tcl Package.

%init %{
        Tcl_PkgProvide(interp,"example","0.0");
%}

Where "example" is the name of the package and "0.0" is the version of the package.

Next, after building the SWIG generated module, you need to execute the "pkg_mkIndex" command inside tclsh. For example :

unix > tclsh
% pkg_mkIndex . example.so
% exit

package, you now need to move it to its own subdirectory which has the same name as the package. For example :

./example/
	   pkgIndex.tcl           # The file created by pkg_mkIndex
	   example.so             # The SWIG generated module

Finally, assuming that you're not entirely confused at this point, make sure that the example subdirectory is visible from the directories contained in either the tcl_library or auto_path variables. At this point you're ready to use the package as follows :

unix > tclsh
% package require example
% fact 4
24
%

If you're working with an example in the current directory and this doesn't work, do this instead :

unix > tclsh
% lappend auto_path .
% package require example
% fact 4
24

As a final note, most SWIG examples do not yet use the package commands. For simple extensions it may be easier just to use the load command instead.

Building new kinds of Tcl interfaces (in Tcl)

/* File : array.i */
%module array

%inline %{
double *new_double(int size) {
        return (double *) malloc(size*sizeof(double));
}
void delete_double(double *a) {
        free(a);
}
double get_double(double *a, int index) {
        return a[index];
}
void set_double(double *a, int index, double val) {
        a[index] = val;
}
int *new_int(int size) {
        return (int *) malloc(size*sizeof(int));
}
void delete_int(int *a) {
        free(a);
}
int get_int(int *a, int index) {
        return a[index];
}
int set_int(int *a, int index, int val) {
        a[index] = val;
}
%}

proc Array {type size} {
    set ptr [new_$type $size]
    set code {
        set method [lindex $args 0]
        set parms [concat $ptr [lrange $args 1 end]]
        switch $method {
            get {return [eval "get_$type $parms"]}
            set {return [eval "set_$type $parms"]}
            delete {eval "delete_$type $ptr; rename $ptr {}"}
        }
    }
    # Create a procedure
    uplevel "proc $ptr args {set ptr $ptr; set type $type;$code}"
    return $ptr
}

Our script allows easy array access as follows :

set a [Array double 100]                   ;# Create a double [100]
for {set i 0} {$i < 100} {incr i 1} {      ;# Clear the array
	$a set $i 0.0
}
$a set 3 3.1455                            ;# Set an individual element
set b [$a get 10]                          ;# Retrieve an element

set ia [Array int 50]                      ;# Create an int[50]
for {set i 0} {$i < 50} {incr i 1} {       ;# Clear it
	$ia set $i 0
}
$ia set 3 7                                ;# Set an individual element
set ib [$ia get 10]                        ;# Get an individual element

$a delete                                  ;# Destroy a
$ia delete                                 ;# Destroy ia

The cool thing about this approach is that it makes a common interface for two different types of arrays. In fact, if we were to add more C datatypes to our wrapper file, the Tcl code would work with those as well--without modification. If an unsupported datatype was requested, the Tcl code would simply return with an error so there is very little danger of blowing something up (although it is easily accomplished with an out of bounds array access).

Shadow classes

# swig_c++.tcl
# Provides a simple object oriented interface using
# SWIG's low level interface.
#

proc new {objectType handle_r args} {
    # Creates a new SWIG object of the given type,
    # returning a handle in the variable "handle_r".
    #
    # Also creates a procedure for the object and a trace on
    # the handle variable that deletes the object when the
    # handle varibale is overwritten or unset
    upvar $handle_r handle
    #
    # Create the new object
    #
    eval set handle \[new_$objectType $args\]
    #
    # Set up the object procedure
    #
    proc $handle {cmd args} "eval ${objectType}_\$cmd $handle \$args"
    #
    # And the trace ...
    #
    uplevel trace variable $handle_r uw "{deleteObject $objectType $handle}"
    #
    # Return the handle so that 'new' can be used as an argument to a procedure
    #
    return $handle
}

proc deleteObject {objectType handle name element op} {
    #
    # Check that the object handle has a reasonable form
    #
    if {![regexp {_[0-9a-f]*_(.+)_p} $handle]} {
        error "deleteObject: not a valid object handle: $handle"
    }
    #
    # Remove the object procedure
    #
    catch {rename $handle {}}
    #
    # Delete the object
    #
    delete_$objectType $handle
}

proc delete {handle_r} {
    #
    # A synonym for unset that is more familiar to C++ programmers
    #
    uplevel unset $handle_r
}

To use this file, we simply source it and execute commands such as "new" and "delete" to manipulate objects. For example :

// list.i
%module List
%{
#include "list.h"
%}

// Very simple C++ example

class List {
public:
  List();  // Create a new list
  ~List(); // Destroy a list
  int  search(char *value);
  void insert(char *);  // Insert a new item into the list
  void remove(char *);  // Remove item from list
  char *get(int n);     // Get the nth item in the list
  int  length;          // The current length of the list
static void print(List *l);  // Print out the contents of the list
};

Now a Tcl script using the interface...

load ./list.so list       ; # Load the module
source swig_c++.tcl       ; # Source the object file

new List l
$l insert Dave
$l insert John
$l insert Guido
$l remove Dave
puts $l length_get

delete l

Extending the Tcl Netscape Plugin

To use the plugin, use the -plugin option :

swig -tcl -plugin interface.i

%{
#define SAFE_SWIG
%}

The step-by-step process for making a plugin extension.

• Make sure you have Tcl7.6/Tk4.2 installed on your machine. We're going to need the header files into order to compile the extension.
• Make sure you have the Netscape plugin properly installed.
• Run SWIG using the `-tcl -plugin' options.
• Compile the extension using the Tcl 7.6/Tk4.2 header files, but linking against the plugin itself. For example :

  unix > gcc -I/usr/local/include -c example.o interface_wrap.c
  unix > ld -shared example.o interface_wrap.o \
         -L/home/beazley/.netscape/plugins/libtclplugin.so -o example.so



• Copy the shared object file to the ~/.tclplug/tcl7.7 directory.

Using the plugin

load $tcl_library/example.so example

Tcl8.0 features

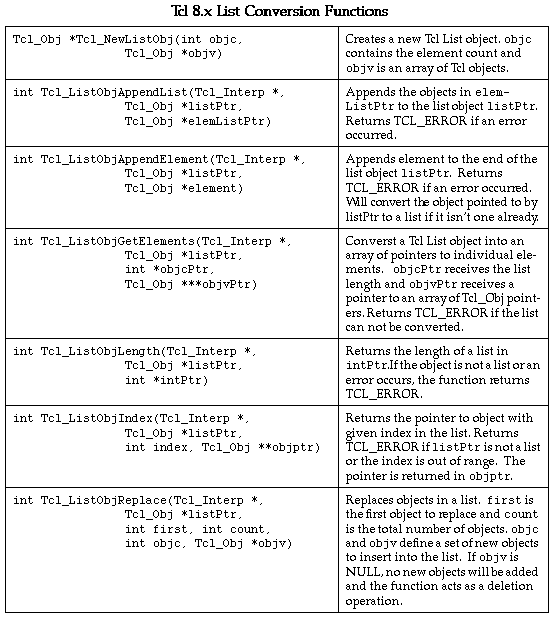

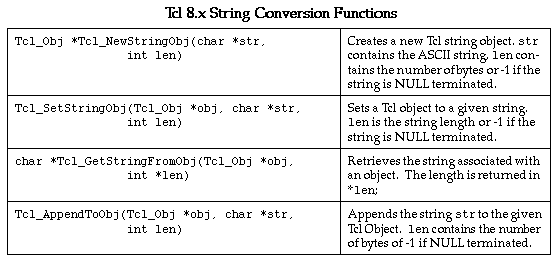

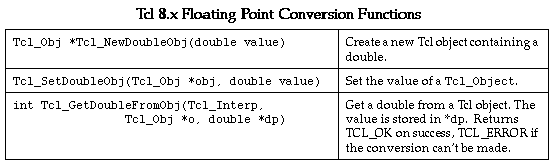

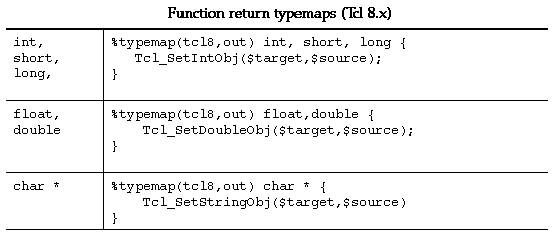

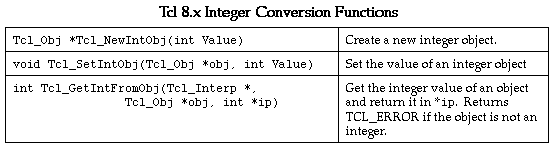

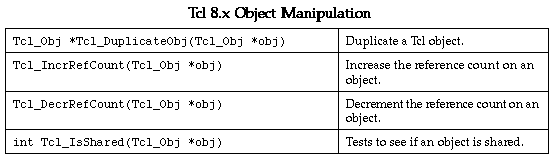

The Tcl 8.0 module uses the new Tcl 8.0 object interface whenever possible. Instead of using strings, the object interface provides more direct access to objects in their native representation. As a result, the performance is significantly better. The older Tcl SWIG module is also compatible with Tcl 8.0, but since it uses strings it will be much slower than the new version.

In addition to using native Tcl objects, the Tcl8.0 manipulates pointers directly in in a special Tcl object. On the surface it still looks like a string, but internally its represented a (value,type) pair. This too, should offer somewhat better performance.
